Encapsulated Steel Calcium Sulphate Raised Floor
16/01/2023Encapsulated panel is fully wrapped around by hot-dipped galvanized steel. The top and bottom steel sheet is pressed and riveted, with calcium sulphate board or chipboard as the inside core.
Finished Floor Height : | 100-1000mm |
Panel Size : | 600*600*26mm、600*600* 30mm |
Corner Lock Hole : | With or without |

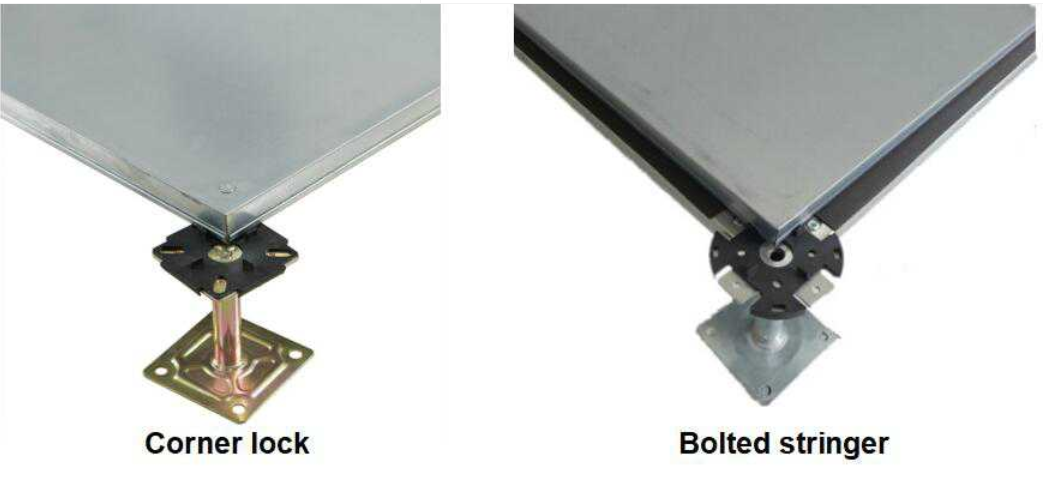

Installation : | Corner lock / Bolted stringer |
It is mainly used for all requirements that high loading ability, better pavement performance high-end applications, such as office, banks, telecommunication rooms, intelligent office, commercial business, exhibitions, workshops, control rooms, converting rooms, and other industries program-controlled room, etc.
● Substrate purity> 85%, has reached international standards
● Can be used in high-demand computer rooms, data centers and etc
● Environmentally friendly, waterproof, fireproof, rustproof
● Excellent loading ability, better flatness, durable
● Better stability in the environment of different temperature and humidity
● Simple structure, flexible installation meets various requirements of wiring
● Profitable Anti Static Galvanized Steel Flooring OEM service and cost-saving program offered
Type | SIZE | CONCENTRATED | IMPACT LOAD | ULTIMATE LOAD | UNIFORM LOAD |
international | mm | N | N | N | N/㎡ |
FS1000 | 600*600*32 | ≥4498 | ≥670 | ≥13494 | ≥23294 |
FS1250 | 600*600*32 | ≥5560 | ≥780 | ≥16680 | ≥33000 |
FS1000 | 600*600*32 | ≥6675 | ≥1005 | ≥19892 | ≥34500 |
